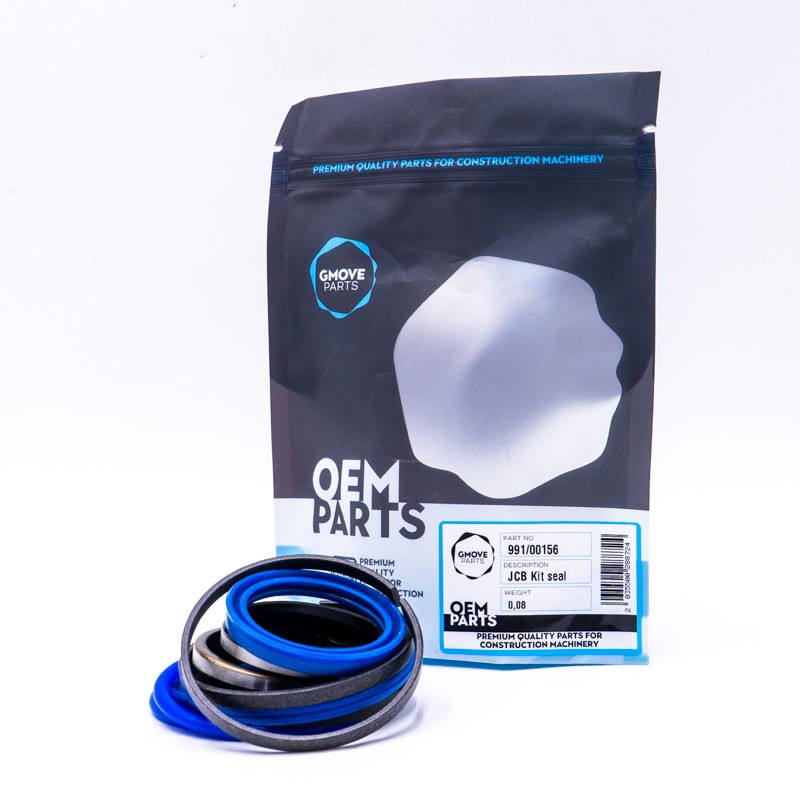

Steering Cylinder Seal Kit 45x75mm (fits JCB) - GMOVE 991/00156
High-quality steering cylinder seal repair kit (STEERING) by GMOVE, part number 991/00156. This kit is dedicated to JCB construction and agricultural machinery. Designed for cylinders with an internal cylinder diameter of 75 mm and a rod diameter of 45 mm. The use of precisely manufactured, modern GMOVE seals allows for the effective elimination of hydraulic fluid leaks and restores the full precision and safety of the steering system operation.
Steering system reliability: The steering cylinder is a component subjected to continuous, dynamic loads and vibrations when driving on uneven terrain. GMOVE kits are manufactured from selected materials (polyurethanes, NBR, Teflon) characterized by increased resistance to friction, pressure surges, and fluctuating temperatures. This ensures trouble-free operation of the machine and an optimal response to steering wheel movements.
Technical Specification:
- Part type: Cylinder seal kit - STEERING.
- Quality class: Premium
- Cylinder / piston diameter: 75 mm.
- Rod diameter: 45 mm.
- Manufacturer/Brand: GMOVE.
- Part number: 991/00156 (99100156).
Compatibility with JCB Machinery:
| Machine Category | Series and Models |
|---|
| Backhoe Loaders |
210/212, 214/215/217, 3/3C/3CS, 3CX COMPACT, 3CX ENTRY LEVEL (Global), 3CX, 3DX, 4/4C/4CN, 4CX, 4DX, 5CX |
| Rough Terrain Forklifts |
926, 930, 940, 950 |
| Telescopic Handlers |
530 SERIES (including 530-70, 530-110 [BS3 HAR/RAJ] variants) |
| OEM Transmissions / Axles |
SD SERIES (including SD55, SD80) |
Workshop Tip: The steering cylinder, due to its low location at the front axle, is exceptionally exposed to mud, water, stone impacts, and road salt.
Key steps during steering system regeneration:
1. Clearance verification: Before installing new seals, be sure to check the condition of the spherical bearings and the pins securing the cylinder. Too much clearance on the mountings causes bending stresses on the rod, which drastically shortens the life of the gland seals.
2. Rod inspection: Ensure that the 45 mm rod is perfectly straight and has no deep chrome losses. Remember that a bent rod will almost immediately unseal the new seal pack.
3. Installation sterility: Clean all components in technical cleaners. Before assembly, generously lubricate the new seals and guides with clean hydraulic oil to avoid the risk of rolling them "dry".
