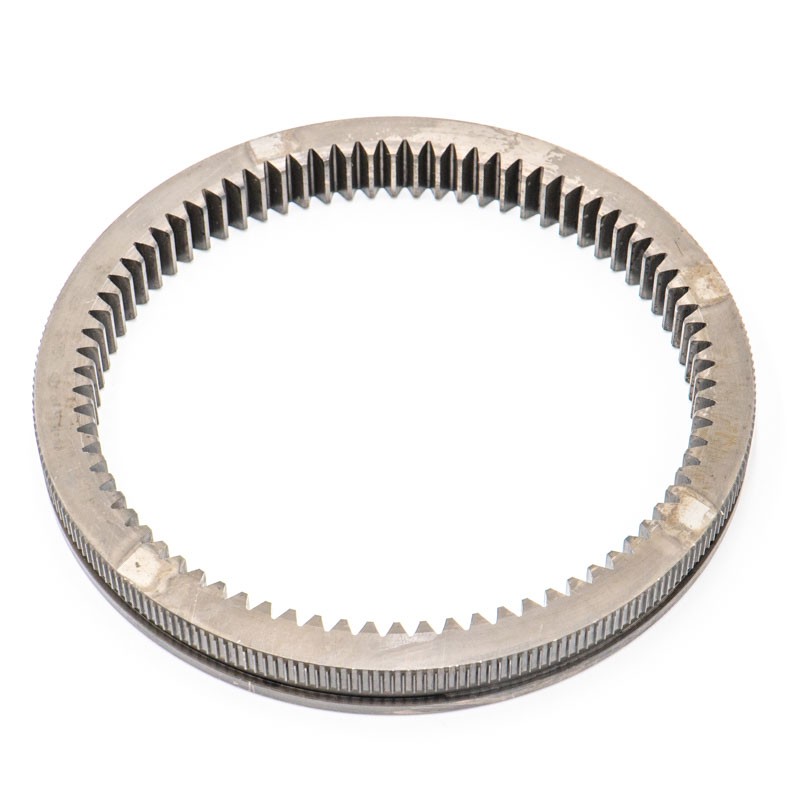

JCB Final Drive Cover Ring Gear (Annulus Gear) - JS / JZ / JCB Series
High-quality final drive cover ring gear (annulus gear), designed for planetary travel drives in JCB tracked excavators. A key component of the reduction system, it serves as the raceway for the planetary gears. Thanks to precision gear manufacturing and advanced heat treatment, the ring gear ensures smooth torque transmission and high resistance to cracking under heavy loads.
Technical Specification:
- Application: Final Drive planetary gearbox.
- Type: Internal tooth ring gear.
- Material: Hardened alloy steel.
- Quality: High resistance to wear and surface pressure.
Compatibility:
| Machine Series | Models |
|---|
| JCB Excavators |
JCB225, JCB245 |
| JS Series |
JS 115, JS 130, JS 140, JS 145, JS 160, JS 180, JS 190, JS 200, JS 205, JS 210, JS 220, JS 235, JS 240, JS 260, JS130 (from 1995 onwards) |
| JZ Series |
JZ 140, JZ 235, JZ 255 |
Workshop Technical Advice: The ring gear works directly with the planetary gears (satellites) – when replacing it, carefully check the condition of the planetary gear teeth. Even minor chipping on the satellites can quickly damage a new ring gear. During cover installation, ensure the ring gear is properly seated and the contact surface with the final drive housing is clean and degreased. It is also recommended to check the permeability of the breather in the cover to prevent pressure build-up, which could damage the seals.
