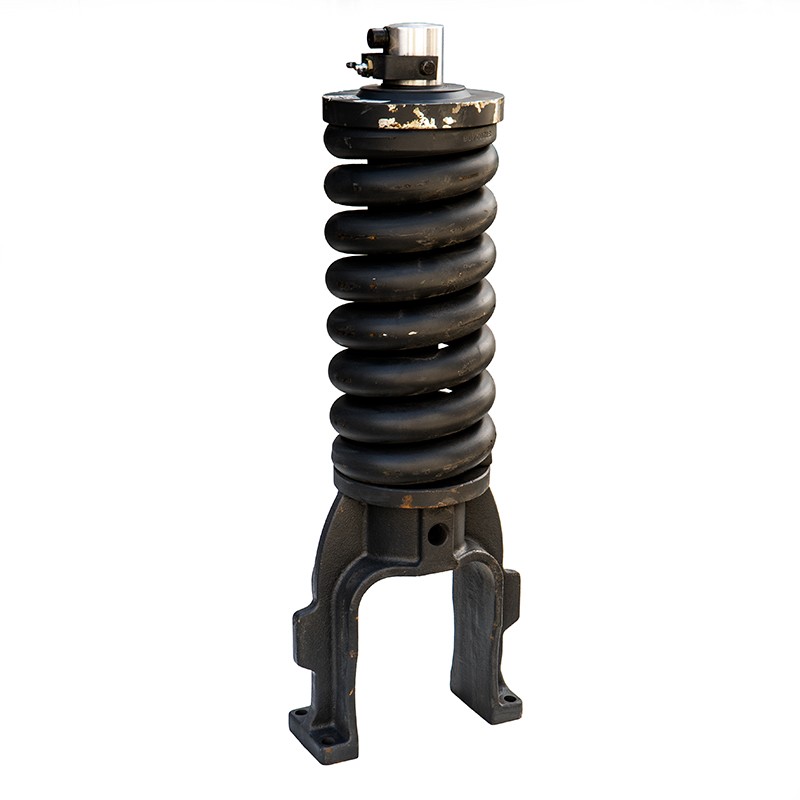

Track Adjuster Recoil Assembly Long Yoke (fits JCB) - DELLAR JRA0215
High-quality complete track adjuster and recoil spring assembly with long yoke by DELLAR for JCB JS Series tracked excavators. The track adjuster recoil unit serves two critical functions: maintaining correct track tension to prevent the track from de-railing, and absorbing shocks and overloads transmitted through the track to the idler wheel and undercarriage when working on hard or rocky ground. The assembly includes the hydraulic adjuster cylinder and recoil spring. This is the long yoke (long mounting bracket) version — dedicated to machines fitted with a short-guide idler wheel (part no. JRA0214). Cross reference number: 215/12231. DELLAR — proven undercarriage component quality at a competitive price.
Technical Specification:
| Part Type |
Complete track adjuster and recoil spring assembly |
|---|
| Parts Category |
Undercarriage / Running Gear / Track Adjuster |
|---|
| Part Number |
JRA0215 |
|---|
| Cross Reference |
215/12231 |
|---|
| Yoke Version |
Long Yoke (Long Mounting Bracket) |
|---|
| Spring — free length |
570 mm |
|---|
| Spring — outer diameter |
220 mm |
|---|
| Spring — number of coils |
8.5 |
|---|
| Quality |
DELLAR |
|---|
Application (JCB Machines):
| Tracked Excavators |
JS Series: JS 200, JS 210, JS 220, JS 240 |
|---|
⚠ Important — verify before ordering: The JRA0215 adjuster with long yoke is designed for machines fitted with a short-guide idler wheel (part no. JRA0214). Before ordering, confirm the yoke and idler wheel version fitted to your machine — a short yoke version (part no. JRA0213) also exists for machines with a long-guide idler wheel.
Workshop Technical Tip: The track adjuster directly affects the safety and service life of the entire undercarriage. A track that is too loose will de-rail during sharp turns or in mud — one that is over-tensioned will rapidly wear rollers, sprockets and track link bushings. Check track sag regularly to the service manual specification: the correct amount of sag in the lower run must be maintained within the stated tolerance. Exercise extreme caution when replacing the recoil assembly — the recoil spring operates under enormous pre-load. Always follow the correct service procedure and use a hydraulic press for disassembly. Never release track tension by loosening the Schrader valve without first de-loading the spring — this can cause a serious accident.
