Complete Swing Drive Motor with Gearbox 11T (fits JCB) - OEM

333/W4439
17,835.00 zł
Tax included

14,500.00 zł tax excl.

4833 4833 By purchasing this product, you will earn points exchangeable for a discount voucher worth 483.30 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 333-W4439 333W4439

Description

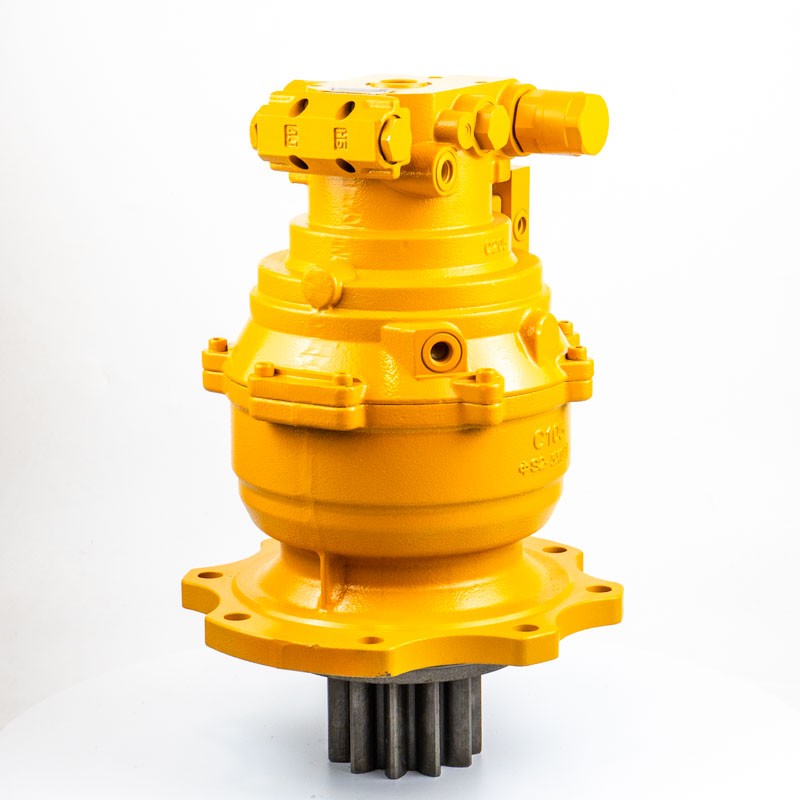

Complete Swing Drive Motor with Gearbox 11T (fits JCB) - OEM 333/W4439

OEM-quality complete swing drive assembly (hydraulic motor + planetary gearbox) for JCB 85Z, 86C, 90Z and 100C Series mini excavators. The assembly consists of an axial piston hydraulic motor integrated with a multi-stage planetary reduction gearbox. It provides precise superstructure control, ensuring smooth swing movements while maintaining the high torque required for working in demanding terrain. Equipped with an integrated hydraulic parking brake. OEM quality - perfect fit and performance identical to the original factory component.

Technical Specification:

Part Type Complete swing drive (axial piston motor + planetary gearbox)
Parts Category Hydraulic System / Swing Drive
Part Number 333/W4439
Construction Axial piston motor integrated with gearbox
Pinion 11 teeth
Mounting 8 mounting holes
Brake Integrated hydraulic parking brake
Quality OEM (first fit quality)

Application (JCB Machines):

JCB 85Z Series
85Z-1 [T2]  ·  85Z-1 [T4F]
85Z-2 [STV JCB]  ·  85Z-2 [T3 JCB]  ·  85Z-2 [T4F GEO]  ·  85Z-2 [T4F JCB]
JCB 86C Series
86C-1 [T2]  ·  86C-1 [T4F]
86C-2 (TAB) [STV JCB]  ·  86C-2 [STV JCB]  ·  86C-2 [T3 JCB]
86C-2 [T4F GEO]  ·  86C-2 [T4F JCB]
JCB 90Z Series
90Z-1 [T4F]  ·  90Z-2 [STV JCB]  ·  90Z-2 [T4F JCB]
JCB 100C Series
100C-1 [T4F]  ·  100C-2 [STV JCB]  ·  100C-2 [T4F JCB]
Workshop Technical Tip: Before installing the complete swing drive, check the condition of the slewing ring and the cleanliness of the mounting seat - worn ring gear teeth will rapidly destroy the new pinion. After fitting the unit, you must pre-fill the hydraulic motor housing with clean hydraulic oil and fill the reduction gearbox with the correct gear oil (to JCB specification, typically 80W90). Failure to pre-fill the motor before the first start can cause immediate seizure. Also check that the drain (leak-off) line is clear - a blocked drain port causes pressure build-up in the housing and destroys the shaft seal.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 333/W4439

Product Details
333/W4439

Data sheet

Machine type
MINIEXCAVATOR
Machine
JCB
