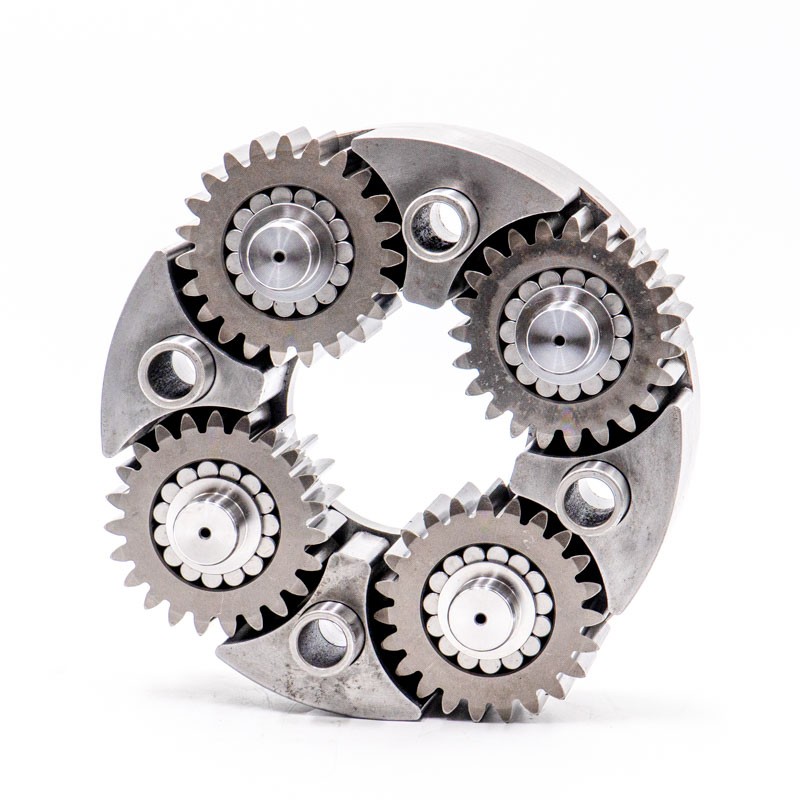

JCB Third 3rd reduction set

JCB Third 3rd reduction set

05/903828
3,751.50 zł
Tax included

3,050.00 zł tax excl.

1016 1016 By purchasing this product, you will earn points exchangeable for a discount voucher worth 101.60 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Drive shaft (hydro motor) - JS OEM JCB Drive shaft (hydro motor) - JS OEM 05/903824 OEM 645.75 zł
JCB First Gear Reduction Set - AZERI PARTS JCB First Gear Reduction Set - AZERI PARTS 05/903825 Azeri Parts 1,390.72 zł
JCB Drive shaft (hydro motor) - JS OEM
JCB Drive shaft (hydro motor) - JS OEM
OEM • 05/903824
645.75 zł
JCB First Gear Reduction Set - AZERI PARTS
JCB First Gear Reduction Set - AZERI PARTS
Azeri Parts • 05/903825
1,390.72 zł
Show all related products ↓

Alternative part numbers : 550/43216 20/951654 05903828 05-903828

Description

JCB Final Drive Reduction Set (3rd Stage) - 05/903828

Complete third reduction set (3rd stage planetary gears with carrier/cage) designed for heavy-duty JCB final drives. This is the final stage of the planetary gearbox, which transfers the highest torque directly to the final drive housing and the drive sprocket. Due to the massive forces acting at this point, the set is made of specially reinforced alloy steel, subjected to multi-stage heat treatment to ensure maximum resistance to cracking and material fatigue.

Technical Specification:

  • Reduction Stage: Third (3rd set – final).
  • Construction Type: Planetary carrier (satellites with carrier).
  • Application: Final drive planetary gearbox (travel drive).

Compatibility:

Machine TypeModels and Series
JS Crawler Excavators JS 130, JS 145, JS 160, JS 180 (years 1995–2015)
JZ Crawler Excavators JZ 140, JZ 140 [T2], JZ 140 [T3]
Workshop Technical Advice: The third reduction stage is where the greatest forces in the entire final drive are concentrated. Failure of this component is most often associated with damage to the internal ring gear of the housing. When installing a new set, it is mandatory to inspect the condition of the teeth inside the final drive housing. If the ring gear has chips or signs of material "pitting," the new reduction set will be destroyed in a very short time. Always change the oil for fresh oil after the first 50 operating hours following a rebuild to remove any micro-shavings from the breaking-in components.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 05/903828

Product Details
05/903828

Data sheet

Machine type
EXCAVATOR
Machine
JCB
