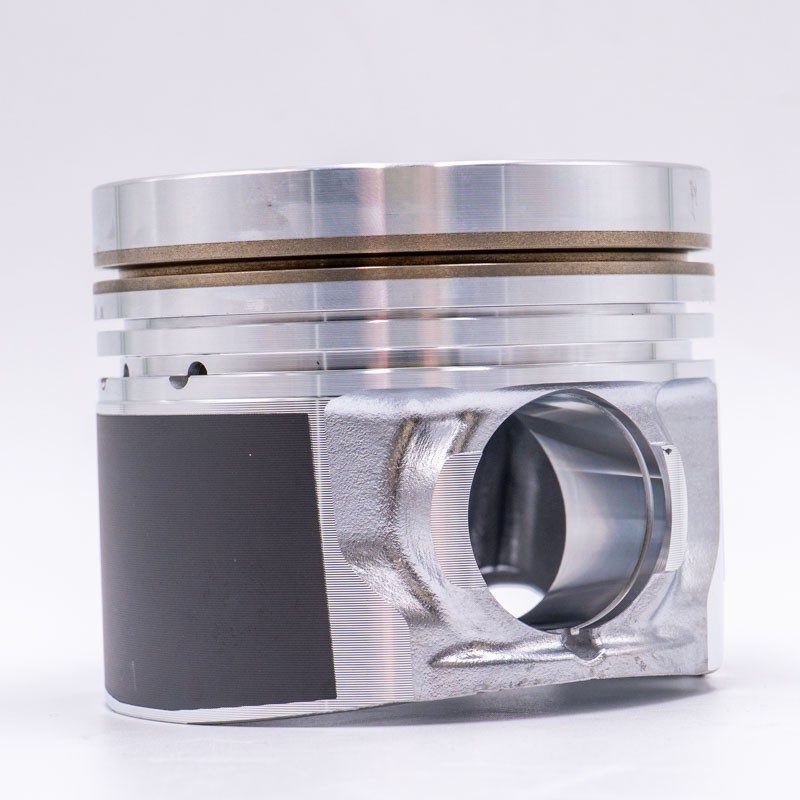

ISUZU Engine Piston 95.4mm 4JJ1 TIER3 TIER4 STD - 8981929260
High-quality engine piston (nominal size STD 95.4mm) designed for reliable ISUZU 4JJ1 power units. This element is a component of the crank-piston system, responsible for transferring the force of exhaust gases to the crankshaft. It guarantees optimal compression and excellent thermal and mechanical resistance, which is absolutely essential for the trouble-free operation of heavy construction machinery in harsh conditions.
Technical Specification:
- Part type: Engine piston.
- Diameter: 95.4 mm (Nominal size / STD).
- Engine compatibility: ISUZU 4JJ1.
- Part Number: (8-98192926-0).
Machine Compatibility:
| Brand and Category | Models and Variants |
|---|
| Case |
Tracked excavators: CX130, CX135, CX145, CX160, CX180 |
| Hitachi |
Tracked excavators: ZX55, ZX60, ZX65, ZX70, ZX110, ZX120, ZX130, ZX135, ZX160, ZX180
Wheeled excavators: ZX140W, ZX145W |
| JCB |
JS series tracked and wheeled excavators |
| John Deere |
Tracked excavators: 135D |
| Kobelco |
Tracked excavators: SK55, SK60, SK70 |
| Takeuchi |
Tracked excavators: TB070, TB114 |
Workshop Tip: Replacing pistons is a very serious intervention in the engine. Before installing a new STD size piston, absolutely check the condition of the cylinder walls (liners) for ovality, deep scratches, and micrometric wear. If the liner is worn beyond the allowable service limits, simply installing a new nominal piston will not restore proper compression and will lead to excessive oil consumption in a short time. Always use new piston rings with the correct end gap, as well as new pins and retainers. Before the final assembly of the power unit, make sure that the oil channels are perfectly clean.
